Corrugated Aluminum Siding
When it comes to protecting and enhancing the exterior of any structure, the choice of material is crucial. Corrugated aluminum siding has emerged as a leading solution, offering an exceptional blend of durability, lightweight properties, and a distinctly modern aesthetic. Whether for residential homes, bustling commercial centers, or rugged industrial facilities, this specialized aluminum siding provides a cost-effective and long-lasting finish.
What is Corrugated Aluminum Siding?
Corrugated aluminum siding refers to exterior wall panels made from flat aluminum sheets that have been passed through a series of rollers. This process creates a wavy, ribbed, or grooved pattern across the panel’s surface, known as “corrugation.” This unique shape does more than just add visual appeal; it significantly increases the panel’s strength and rigidity, making thin aluminum sheets surprisingly robust.
Used as an outer layer for buildings, corrugated aluminum siding offers superior protection against the elements while giving a building a clean, contemporary, or even industrial look.
Why Choose Corrugated Aluminum Siding?
The advantages of selecting corrugated aluminum siding for your project are compelling:
- Exceptional Durability and Longevity: Aluminum is naturally resistant to rust, corrosion, and rot. The corrugation process adds further strength, making the siding highly resistant to dents and impacts. This ensures a long lifespan with minimal degradation, even in harsh weather conditions.
- Incredibly Lightweight: Compared to other metal siding options, aluminum is significantly lighter. This not only makes installation easier and faster but also reduces the structural load on the building, potentially lowering construction costs and making it an ideal lightweight siding solution.
- Aesthetic Versatility: The wavy texture of corrugated aluminum siding creates dynamic shadows and highlights, offering a modern, industrial, or even rustic appeal.
- Low Maintenance: Once installed, aluminum siding requires very little upkeep. It doesn’t need painting, sealing, or staining, and can be easily cleaned with basic washing, freeing up time and resources.
- Fire Resistance: Aluminum is a non-combustible material, which contributes to the overall fire safety of a building.
- Energy Efficiency Potential: When combined with proper insulation, corrugated aluminum siding can contribute to a building’s thermal performance, helping to reduce heating and cooling costs.
- Environmentally Friendly: Aluminum is 100% recyclable without loss of quality, making corrugated aluminum siding an eco-conscious choice for sustainable building practices.
Classification of Corrugated Aluminum Siding
Corrugated aluminum siding is primarily classified by the profile or pattern of its corrugation, which affects both its structural properties and visual impact.

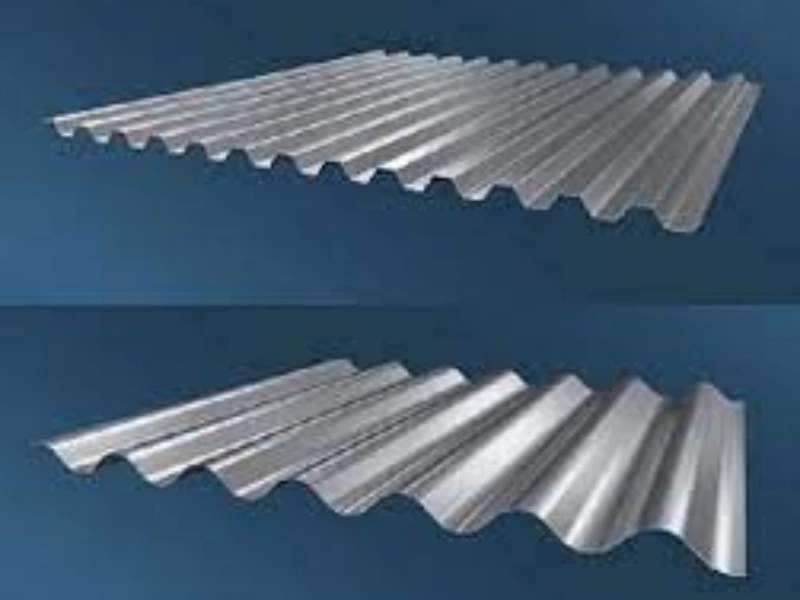

Corrugation Profiles (Wave Patterns)
The type of wave pattern gives the aluminum panel its distinctive look and strength characteristics.

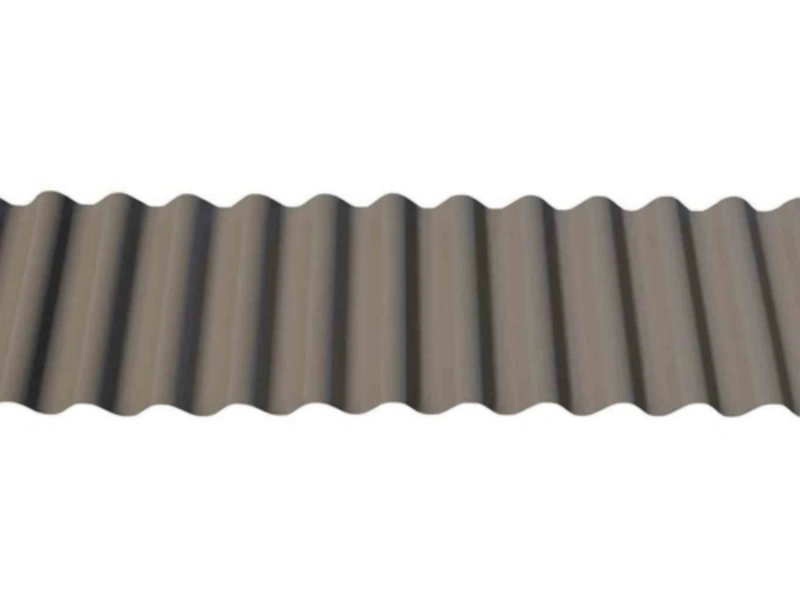

- Sinusoidal Corrugated (Classic Wave):
- Description: The most traditional corrugated pattern, featuring smooth, rounded waves.
- Features: Offers a classic, flowing aesthetic; good for both modern and retro designs; provides balanced strength.
- Typical Uses: Residential siding, agricultural buildings, decorative interior panels.
- Box Rib / R-Panel / PBR Panel:
- Description: Characterized by more angular, square-shaped ribs with a wider flat area between them.
- Features: Provides superior strength and rigidity; often has an overlap for better weather sealing; creates a more industrial or commercial look.
- Typical Uses: Commercial and industrial buildings, warehouses, large-span cladding.
- V-Rib / U-Panel:
- Description: Features deeper, more pronounced V-shaped or U-shaped ribs, offering a strong, linear appearance.
- Features: High strength and impact resistance; often used for demanding applications; provides a very contemporary, bold look.
- Typical Uses: High-performance architectural facades, industrial buildings, accent walls.
Key Specifications for Corrugated Aluminum Siding
When selecting corrugated aluminum siding, several technical specifications are critical to ensure the material meets the project’s structural, aesthetic, and budgetary requirements.
Thickness
The thickness of the aluminum sheet before corrugation significantly influences the panel’s strength, dent resistance, and overall weight.
| Thickness (Gauge / mm) | Typical Applications and Characteristics |
|---|---|
| 28-30 Gauge (0.3-0.4mm) | Light-duty, highly formable, decorative accents, small sheds. Lowest cost. |
| 24-26 Gauge (0.5-0.6mm) | Standard for residential siding, light commercial applications, garages. Good balance of cost and durability. |
| 20-22 Gauge (0.8-1.0mm) | Heavy-duty commercial and industrial cladding, high-impact areas, longer spans. Maximum durability and rigidity. |
Alloy
The aluminum alloy chosen affects the material’s formability, strength, and resistance to environmental factors.
| Alloy Type | Key Properties | Suitable Applications |
|---|---|---|
| 3003 H14 | Good strength and excellent formability, very good corrosion resistance. Most common alloy for corrugated aluminum products. | General residential and commercial siding where standard performance is needed. |
| 3004 H34 | Slightly higher strength than 3003, good for more demanding environments and larger spans. | Industrial siding, areas with moderate structural requirements. |
| 5052 H32/H34 | Higher strength, excellent fatigue resistance, and superior corrosion resistance, especially in marine and coastal environments. | Premium siding, applications exposed to harsh weather or saltwater. |

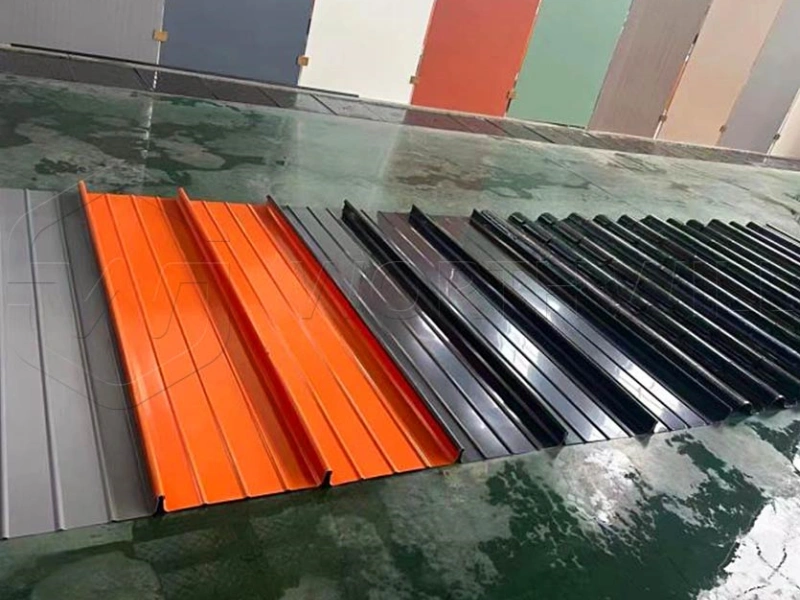

Finishes and Colors
The surface finish plays a major role in the aesthetic and protective qualities of the siding.
- Mill Finish: The raw, uncoated aluminum surface. Offers a natural, metallic, industrial look.
- Painted Finishes (Kynar 500®/PVDF, SMP): High-performance coatings that offer a vast array of colors, excellent UV resistance, and long-term color retention, making them ideal for exterior applications.
- Anodized Finish: An electrochemical process that thickens the natural oxide layer, enhancing corrosion resistance and surface hardness. Available in various metallic tones (e.g., clear, bronze, black).
Panel Width and Length
Corrugated aluminum siding is available in various standard widths (often representing the effective coverage after overlapping) and can be custom-cut to specific lengths for projects, reducing waste and easing installation. Common effective widths typically range from 24 inches to 48 inches.
Applications of Corrugated Aluminum Siding
The versatility and durability of corrugated aluminum siding make it suitable for a broad spectrum of applications:

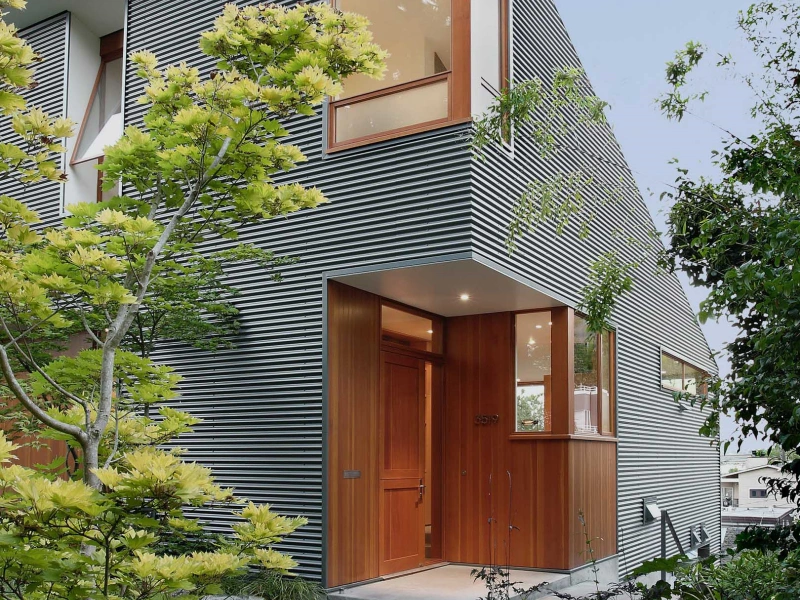

- Residential Buildings:
- Whole-house siding
- Garage cladding and shed exteriors
- Accent walls and feature panels
- Backyard studios and tiny homes
- Commercial Properties:
- Retail store facades and exterior walls
- Office building accents and feature sections
- Restaurant exteriors and interior decorative elements
- Self-storage facilities
- Industrial & Agricultural Facilities:
- Warehouses and manufacturing plants
- Barns, stables, and other farm buildings
- Storage facilities and equipment shelters
- Architectural & Design Projects:
- Modern and contemporary architectural facades
- Retrofit projects for existing buildings
- Interior wall panels for an industrial-chic aesthetic
- Privacy screens and fences
Packaging for Corrugated Aluminum Siding
Proper packaging is crucial to ensure that corrugated aluminum siding arrives at the job site in pristine condition, ready for installation.
- Protective Bundles: Panels are typically stacked in secure bundles on sturdy wooden pallets.
- Interleaving Material: Sheets of paper, foam, or plastic film are often placed between individual siding panels to prevent scratching and scuffing during transit.
- Weatherproof Wrapping: The entire bundle is usually wrapped in heavy-duty plastic film or waterproof paper to protect against moisture, dirt, and dust.
- Strapping and Reinforcement: Steel or plastic bands are used to securely strap the bundle to the pallet, preventing shifting. Edge protectors or corner guards may be added to prevent damage to the panel ends.
- Custom Crating: For very long, delicate, or international shipments, specialized wooden crates may be used to provide maximum protection.
Choosing Your Corrugated Aluminum Siding Supplier
To ensure the success of your project, partner with a reputable corrugated aluminum siding supplier who offers:
- High-Quality Materials: Consistent gauge, alloy, and finish.
- Wide Range of Profiles & Colors: Options to meet diverse design needs.
- Customization Capabilities: Ability to provide specific lengths and possibly unique profiles.
- Technical Support: Expert advice on selection and installation.
- Reliable Delivery: Ensuring materials arrive on time and in excellent condition.
Technical Specifications
| Parameter | Standard Value | Testing Standard |
|---|---|---|
| Tensile Strength | 95-255 MPa | ASTM E8/E8M |
| Elongation | 10-20% | ASTM E8/E8M |
| Flatness Tolerance | ±2mm per 300mm | ASTM D1009 |
| Color Consistency | ΔE < 2.0 | ASTM D2244 |
| Coating Thickness | 20-25μm | ASTM D7091 |
Installation Advantages
- Easy Handling: Lightweight panels reduce installation time
- Simple Cutting: Can be cut with standard tools
- Weathertight: Overlapping design provides excellent protection
- Thermal Movement: Accommodates expansion and contraction
- Compatibility: Works with various insulation systems
Finish Options
| Finish Type | Available Colors | Warranty Period | Maintenance |
|---|---|---|---|
| Mill Finish | Natural silver | – | Regular cleaning |
| Anodized | Bronze, gold, black | 20 years | Low maintenance |
| PVDF Coated | 30+ standard colors | 25 years | Very low maintenance |
| Polyester Coated | 20+ standard colors | 15 years | Low maintenance |
Comparison with Other Siding Materials
| Feature | Aluminum Siding | Vinyl Siding | Steel Siding | Wood Siding |
|---|---|---|---|---|
| Durability | Excellent (30+ years) | Good (20-30 years) | Excellent (30+ years) | Good (15-25 years) |
| Maintenance | Very Low | Low | Medium | High |
| Cost | Medium | Low | Medium | High |
| Fire Resistance | Excellent | Poor | Excellent | Poor |
| Eco-Friendliness | Excellent | Poor | Good | Excellent |
Environmental Benefits
- ♻️ Recycled Content: Contains 40-85% recycled aluminum
- 🌱 Long Lifespan: 30+ years reduces resource consumption
- 💧 Low Water Usage: Minimal water required for maintenance
- 🔥 Energy Efficient: Reflective surface reduces cooling costs
- 🏗️ Recyclable: 100% recyclable at end of life
Maintenance Guidelines
- Cleaning: Annual cleaning with water and mild detergent
- Inspection: Check for damage or corrosion annually
- Repairs: Easy replacement of individual panels
- Coating Maintenance: Inspect coating every 5 years
- Fastener Check: Verify fastener tightness periodically
Frequently Asked Questions (FAQ)
Q1: What is the standard size of corrugated aluminum siding?
A: Standard sizes are 1000mm–1250mm width, and length can be customized up to 6000mm.
Q2: Is corrugated aluminum siding better than steel siding?
A: Yes, aluminum siding is lighter, more corrosion-resistant, and requires less maintenance compared to steel.
Q3: Can I order painted or PVDF coated aluminum siding?
A: Yes, we provide painted, coated, and embossed finishes upon request.
Q4: Is it suitable for coastal environments?
A: Yes, alloys like 5052 and 6061 are ideal for marine and coastal projects due to high corrosion resistance.
Q: How does aluminum siding perform in coastal areas?
A: Excellent performance when using marine-grade alloys (5005, 5052) with proper coatings.
Q: Can it be installed over existing siding?
A: Yes, with proper preparation and mounting system.
Q: What is the typical warranty period?
A: 20-25 years for coatings, 30+ years for the aluminum substrate.
Q: How does it handle extreme weather?
A: Excellent resistance to wind, rain, and temperature extremes.
Q: Is painting required?
A: No, pre-finished options available, but painting is possible if desired.
